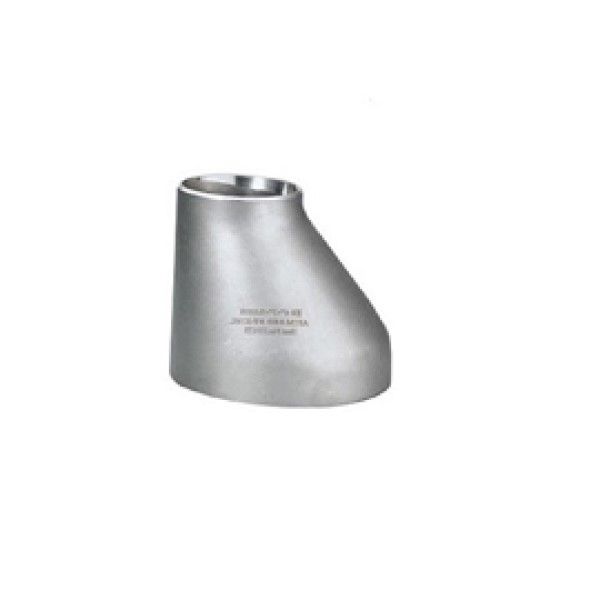

Bầu lệch tâm công nghiệp, inox 304, SCH10

Thương hiệu: Inox Men

Giá: 83,000₫ (Chưa có VAT)

Thời gian bảo hành: 12 tháng

Kích thước

DN32-25

DN40-25

DN40-32

DN50-20

DN50-25

DN50-32

DN50-40

DN65-25

DN65-32

DN65-40

DN65-50

DN80-25

DN80-32

DN80-40

DN80-50

DN80-65

DN100-32

DN100-40

DN100-50

DN100-65

DN100-80

DN125-50

DN125-65

DN125-80

DN125-100

DN150-65

DN150-80

DN150-100

DN150-125

DN200-50

DN200-80

DN200-100

DN200-125

DN200-150

DN250-125

DN250-150

DN250-200

DN300-150

DN300-200

DN300-250

Vật liệu

Inox 304

Số lượng

CHÍNH SÁCH CHẤT LƯỢNG

HỖ TRỢ 24/7

MIỄN PHÍ VẬN CHUYỂN

CHÍNH SÁCH RIÊNG TƯ

STAINLESS STEEL BUTT-WELD SEAMLESS FITTINGS

PHỤ KIỆN ĐÚC NỐI HÀN ĐƯỜNG ỐNG ĐÚC INOX CÔNG NGHIỆP

ECCENTRIC REDUCERS

CÔN THU BẦU GIẢM ĐÚC LỆCH TÂM

R(E) OR ER

GB						mm
		OD1		OD2
A	B	I	II	I	II	H
20Ax10A	3/4x3/8	26.9	25	17.3	14	38.0
20Ax15A	3/4x1/2	26.9	250	21.3	18	38.0
15Ax8A	1/2x1/4	21.3	18	26.7	10	---
15Ax10A	1/2x3/8	21.3	18	21.3	14	---
25Ax15A	1x1/2	33.7	32	26.9	18	51.0
25Ax20A	1x3/4	42.4	32	33.7	25	51.0
32Ax15	1.1/4x1/2	42.4	38	21.3	18	51.0
32Ax20	1.1/4x3/4	42.4	38	26.9	25	51.0
32Ax25A	1.1/4.1	48.3	38	33.7	32	51.0
40Ax15A	1.1/2x1/2	48.3	45	21.3	18	64.0
40Ax20	1.1/2x3/4	48.3	45	26.9	25	64.0
40Ax25	1.1/2x3/4	48.3	45	33.7	32	64.0
40Ax32A	1.1/2x1.1/4	48.3	45	42.4	38	64.0
50Ax20A	2x3/4	60.3	57	26.9	25	64.0
50Ax25A	2x1	60.3	57	33.7	32	64.0
50Ax32A	2x1.1/4	60.3	57	42.4	38	64.0
50Ax40A	2x1.1/2	60.3	57	48.3	45	76.0
65Ax25A	2.1/2x1	73.0	76	33.7	32	76.0
65Ax32A	2.1/2x1.1/4	73.0	76	42.4	38	76.0
65Ax40A	2.1/2x1.1/2	73.0	76	48.3	45	76.0
65Ax50A	2.1/2x2	73.0	76	60.3	57	89.0
80Ax32A	3x1.1/2	88.9	89	42.4	38	89.0
80Ax40A	3x2.1/2	88.9	89	48.3	45	89.0
80Ax50A	3x2	88.9	89	60.3	57	89.0
80Ax65A	3x2.1/2	88.9	89	73.0	76	89.0
90Ax40	3.1/2x1.1/2	101.6	---	48.3	---	102.0
90Ax50	3.1/2x2	101.6	---	60.3	---	102.0
90Ax65A	3.1/2x2.1/2	101.6	---	73.0	---	102.0
90Ax80A	3.1/2x3	101.6	---	88.9	---	102.0
100Ax40	4x1.1/2	114.3	108	48.3	45	102.0
100x50A	4x2	114.3	108	60.3	57	127.0
100Ax65A	4x2.1/2	114.3	108	73.0	76	127.0
100Ax80A	4x3	114.3	108	88.9	89	127.0
100Ax90A	4x3.1/2	114.3	----	101.6	---	127.0
125Ax50A	5x2	141.3	133	60.3	57	127.0
125Ax65A	5x2.1/2	141.3	133	73.0	76	127.0
125Ax80A	5x3	141.3	133	88.9	89	127.0
125Ax90A	5x3.1/2	141.3	---	101.6	---	127.0
125x100A	5x4	141.3	133	114.3	133	140.0
150Ax65A	6x2.1/2	168.3	159.0	73.0	76.0	140.0
150Ax80A	6x3	168.3	159	88.9	89.0	140.0
150AX90	6x3.1/2	168.3	----	101.6	---	140.0
150Ax100A	6x4	168.3	159.0	114.3	108.0	140.0
150Ax125A	6x5	168.3	159.0.	141.3	133.0	140.0

JIS				mm
A	B	OD1	OD2	H
20Ax10A	3/4x3/8	27.2	21.7	38.1
20Ax15A	3/4x1/2	34.0	21.7	50.8
25Ax15A	1x1/2	42.7	27.2	50.8
25Ax20A	1x3/4	42.7	34.0	50.8
32Ax15	1.1/4x1/2	48.6	21.7	50.8
32Ax20	1.1/4x3/4	48.6	27.2	50.8
32Ax25A	1.1/4.1	48.6	34.0	63.5
40Ax15A	1.1/2x1/2	48.6	42.7	63.5
40Ax20	1.1/2x3/4	60.5	48.6	63.5
40Ax25	1.1/2x3/4	60.5	60.5	63.5
40Ax32A	1.1/2x1.1/4	60.5	42.7	76.2
50Ax20A	2x3/4	60.5	48.6	76.2
50Ax25A	2x1	60.5	60.5	76.2
50Ax32A	2x1.1/4	60.5	76.3	76.2
50Ax40A	2x1.1/2	60.5	42.7	88.9
65Ax25A	2.1/2x1	76.3	48.6	88.9
65AX32A	2.1/2x1.1/4	76.3	60.5	88.9
65Ax25A	2.1/2x1	76.3	48.6	88.9
65AX32A	2.1/2x1.1/4	76.3	60.5	88.9
65Ax40A	2.1/2x1.1/2	76.3	76.3	88.9
65Ax50A	2.1/2x2	76.3	42.7	101.6
80Ax32A	3x1.1/2	89.1	48.6	101.6
80Ax40A	3x2.1/2	89.1	60.5	101.6
80Ax50A	3x2	89.1	76.3	101.6
80Ax65A	3x2.1/2	89.1	42.7	101.6
90Ax40	3.1/2x1.1/2	101.6	49.6	101.6
90Ax50	3.1/2x2	101.6	60.5	101.6
90Ax65A	3.1/2x2.1/2	101.6	76.3	101.6
90Ax80A	3.1/2x3	101.6	89.1	101.6
100Ax40	4x1.1/2	114.3	48.6	101.6
100x50A	4x2	114.3	60.5	101.6
100Ax65A	4x2.1/2	114.3	76.3	101.6
100Ax80A	4x3	114.3	89.1	101.6
100Ax90A	4x3.1/2	114.3	101.6	101.6
125Ax50A	5x2	139.8	60.5	101.6
125Ax65A	5x2.1/2	139.8	86.3	127.0
125Ax80A	5x3	139.8	89.1	127.0
125Ax90A	5x3.1/2	139.8	101.6	127.0
125x100A	5x4	139.8	114.3	120.0
150Ax65A	6x2.1/2	165.2	76.1	139.7
150Ax80A	6x3	165.2	89.1	139.7
150AX90	6x3.1/2	165.2	101.6	139.7
150Ax100A	6x4	165.2	114.3	139.7
150Ax125A	6x5	165.2	139.8	139.7

ASME				mm
A	B	OD1	OD2	H
20Ax10A	3/4x3/8	26.7	17.3	38.0
20Ax15A	3/4x1/2	26.7	21.3	38.0
15Ax8A	1/2x1/4	21.3	13.7	---
15Ax10A	1/2x3/8	21.3	17.3	---
25Ax15A	1x1/2	33.4	21.3	51.0
25Ax20A	1x3/4	33.4	26.7	51.0
32Ax15	1.1/4x1/2	42.2	21.3	51.0
32Ax20	1.1/4x3/4	42.2	26.7	51.0
32Ax25A	1.1/4.1	42.2	33.4	51.0
40Ax15A	1.1/2x1/2	48.3	21.3	64.0
40Ax20	1.1/2x3/4	48.3	26.7	64.0
40Ax25	1.1/2x3/4	48.3	33.4	64.0
40Ax32A	1.1/2x1.1/4	48.3	42.2	64.0
50Ax20A	2x3/4	60.3	26.7	76.0
50Ax25A	2x1	60.3	33.4	76.0
50Ax32A	2x1.1/4	60.3	42.2	76.0
50Ax40A	2x1.1/2	60.3	48.3	76.0
65Ax25A	2.1/2x1	73.0	33.4	89.0
65AX32A	2.1/2x1.1/4	73.0	42.2	89.0
65Ax40A	2.1/2x1.1/2	73.0	48.3	89.0
65Ax50A	2.1/2x2	73.0	60.3	89.0
80Ax32A	3x1.1/2	88.9	42.2	89.0
80Ax40A	3x2.1/2	88.9	48.3	89.0
80Ax50A	3x2	88.9	60.3	89.0
80Ax65A	3x2.1/2	88.9	73.0	89.0
90Ax40	3.1/2x1.1/2	101.6	48.3	102.0
90Ax50	3.1/2x2	101.6	60.3	102.0
90Ax65A	3.1/2x2.1/2	101.6	73.0	102.0
90Ax80A	3.1/2x3	101.6	88.9	102.0
100Ax40	4x1.1/2	114.3	48.3	102.0
100x50A	4x2	114.3	60.3	102.0
100Ax65A	4x2.1/2	114.3	73.0	127.0
100Ax80A	4x3	114.3	88.9	127.0
100Ax90A	4x3.1/2	114.3	101.6	127.0
125Ax50A	5x2	141.3	60.3	127.0
125Ax65A	5x2.1/2	141.3	73.0	127.0
125Ax80A	5x3	141.3	88.9	127.0
125Ax90A	5x3.1/2	141.3	101.6	140.0
125x100A	5x4	141.3	114.3	140.0
150Ax65A	6x2.1/2	168.3	88.9	140.0
150Ax80A	6x3	168.3	88.9	140.0
150AX90	6x3.1/2	168.3	101.6	140.0
150Ax100A	6x4	168.3	141.3	140.0
150Ax125A	6x5	168.3	141.3	140.0
