Chữ thập vi sinh, inox 304,316, bóng gương, chuẩn SMS, nối clamp

Thương hiệu: Inox Men
Giá: 206,300₫ (Chưa có VAT)
Thời gian bảo hành: 12 tháng
Kích thước
Vật liệu
Số lượng
CHÍNH SÁCH CHẤT LƯỢNG
HỖ TRỢ 24/7
MIỄN PHÍ VẬN CHUYỂN
CHÍNH SÁCH RIÊNG TƯ

Product Description

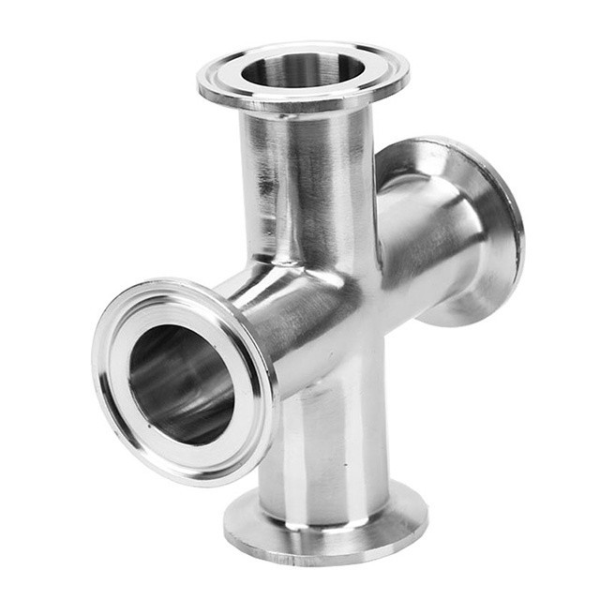

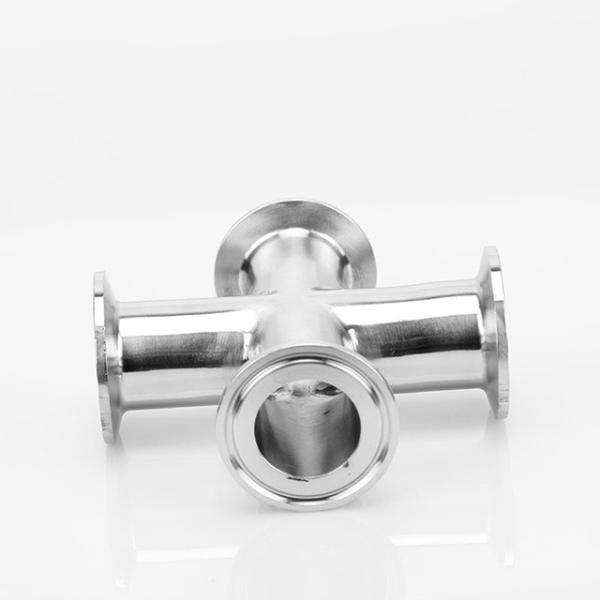

Chữ thập inox vi sinh nối nhanh clamp

PRODUCT DESCRIPTION
Product Name: clamped crossLabel: As per customer’s requestPacking: method Carton, plywood pallet, plywood caseDelivery: Transport by Sea / Air / Express / Pickup
PRODUCT’S INFORMATION

Clamped Cross 3A
SizeLKAT304316
1/2″31.825.212.71.65
3/4″60.325.2191.65
1″60.350.525.41.65
11/4″67.750.531.81.65
1 1/2″69.950.5381.65
2″88.96450.81.65
2 1/2″88.977.5631.65
3″95.39176.21.65
4″114.3119101.62.11
6″149.2167152.42.77
PRODUCT TESTING

The entire valve assembly testing



  • 100% inspection in accordance with the detection of single

Valve seal test



  • Testing standards is carried out in accordance with DIN EN 12266-1
  • 100% of the valves are sealed after installation test

The detection of surface finish



  • 100% visual inspection
  • Surface finish cytometry

Weld Inspection



  • 100% visual inspection
  • ALL welds are detected through the endoscope 100% , rather than directly with the naked eye
  • 100% of the stress test

Contact with the material body for non-destructive testing

( According to customer requirements or internal norms required )



  • Body material composition

– Spectrometer detection

– Detection of ferrite content



  • Body material structure

– Visually

– Liquid penetrant test holes

– X -ray inspection



  • Size control

– Standards of professional equipment testing

– Coordinate Measuring Machine (CMM)



Meets DIN EN 10204 specification material proof



  • Provided by stainless steel oven Analysis Report No. 3.1

(In line with U.S factory test report MTR)

This also applies to all material analysis report in accordance with the requirements of ASME-BPE standard



  • documentation to prove the consistency of the results
  • specification provides consistency proof



LƯU Ý:

Sản phẩm Chữ thập vi sinh, inox 304,316, bóng gương, chuẩn SMS, nối clamp được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
