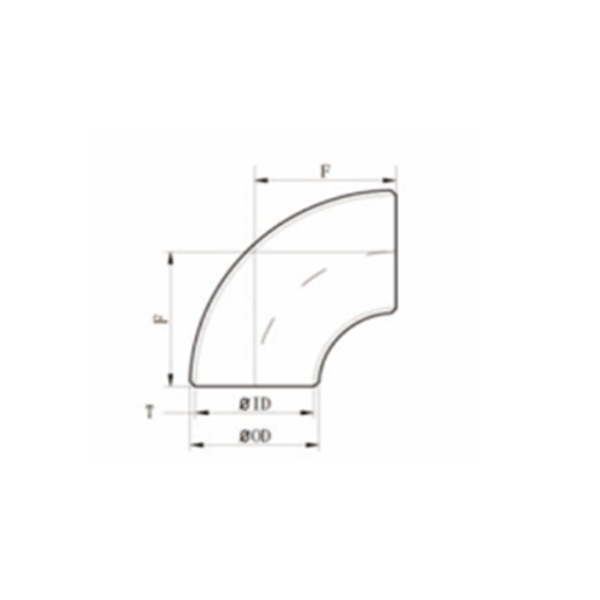

STAINLESS STEEL BUTT-WELDING FITTINGS PHỤ KIỆN NỐI HÀN ĐƯỜNG ỐNG INOX CÔNG NGHIỆP | 90° LONG RADIUS ELBOWS CÚT HÀN 90° LOẠI DÀI | 90E(L) OR 90LR | | |
GB | Unit: mm | NPS | Outside diam | SCH 5S | SCH 10S | SCH40S | Center to end H | A | B | ODⅠ | ODⅡ | T | IDⅠ | IDⅡ | T | IDⅠ | IDⅡ | T | IDⅠ | IDⅡ | 15A | 1/2” | 21.3 | 18.00 | 1.65 | 18.03 | 14.70 | 2.11 | 16.43 | 17.08 | 2.77 | 15.80 | 12.46 | 16 | 20A | 3/4” | 26.9 | 25.00 | 1.65 | 23.37 | 21.70 | 2.11 | 22.45 | 22.68 | 2.87 | 20.93 | 19.28 | 19 | 25A | 1” | 33.7 | 32.00 | 1.65 | 30.10 | 28.70 | 2.77 | 27.86 | 28.16 | 3.38 | 26.64 | 25.24 | 22 | 32A | 1.1/4” | 42.4 | 38.00 | 1.65 | 38.86 | 34.70 | 2.77 | 36.63 | 36.86 | 3.56 | 35.05 | 30.88 | 25 | 40A | 1.1/2” | 48.3 | 45.00 | 1.65 | 44.96 | 41.70 | 2.77 | 42.72 | 42.76 | 3.68 | 40.89 | 37.64 | 29 | 50A | 2” | 60.3 | 57.00 | 1.65 | 57.02 | 53.70 | 2.77 | 54.79 | 54.76 | 3.91 | 52.50 | 49.18 | 35 | 65A | 2.1/2” | 73.0 | 76.00 | 2.11 | 68.81 | 71.78 | 3.05 | 66.93 | 66.90 | 5.16 | 62.71 | 65.68 | 44 | 80A | 3” | 88.9 | 89.00 | 2.11 | 84.68 | 84.78 | 3.05 | 82.80 | 82.80 | 5.49 | 77.93 | 78.02 | 51 | 90A | 3.1/2” | 101.6 | ----- | 2.11 | 97.38 | ----- | 3.05 | 95.50 | 95.50 | 5.74 | 90.12 | ----- | 57 | 100A | 4” | 114.3 | 108.00 | 2.11 | 112.19 | 103.78 | 3.05 | 108.20 | 108.20 | 6.02 | 102.26 | 95.96 | 64 | 125A | 5” | 141.3 | 133.00 | 2.77 | 135.76 | 127.46 | 3.40 | 134.49 | 134.50 | 6.55 | 128.19 | 119.90 | 79 | 150A | 6” | 168.3 | 159.00 | 2.77 | 162.74 | 153.46 | 3.40 | 161.47 | 161.50 | 7.11 | 154.05 | 144.78 | 95 | 200A | 8” | 219.1 | 219.00 | 2.77 | 213.54 | 213.46 | 3.76 | 211.56 | 211.58 | 8.18 | 202.72 | 202.64 | 127 | 250A | 10” | 273.0 | 273.00 | 3.40 | 266.24 | 266.20 | 4.19 | 264.67 | 264.62 | 9.27 | 254.51 | 254.46 | 159 | 300A | 12” | 323.9 | 325.00 | 3.96 | 315.93 | 317.08 | 4.57 | 314.71 | 314.76 | 9.53 | 304.80 | 305.94 | 190 | 350A | 14” | 355.6 | 377.00 | 3.96 | 347.68 | 369.09 | 4.78 | 346.05 | 346.04 | ----- | ----- | ----- | 222 | 400A | 16’ | 406.4 | 426.00 | 4.19 | 398.02 | 417.62 | 4.78 | 396.85 | 396.84 | ----- | ----- | ----- | 254 | 450A | 18” | 457.0 | 480.00 | 4.19 | 448.82 | 471.62 | 4.78 | 447.65 | 447.44 | ----- | ----- | ----- | 286 | 500A | 20” | 508.0 | 530.00 | 4.78 | 498.45 | 520.44 | 5.54 | 496.93 | 496.92 | ----- | ----- | ----- | 318 | 550A | 22” | 559.0 | ----- | 4.78 | 549.25 | ----- | 5.54 | 547.73 | 547.92 | ----- | ----- | ----- | 343 | 600A | 24” | 610.0 | 630.00 | 5.54 | 598.53 | 618.92 | 6.35 | 596.90 | 597.30 | ----- | ----- | ----- | 381 |
ASME | Unit: mm | NPS | OD | SCH 5S | SCH 10S | SCH 40S | Center to end H | A | B | T | ID | T | ID | T | ID | 15A | 1/2” | 21.3 | 1.65 | 18.03 | 2.11 | 16.43 | 2.77 | 15.80 | 38 | 20A | 3/4” | 26.7 | 1.65 | 23.37 | 2.11 | 22.45 | 2.87 | 20.93 | 38 | 25A | 1” | 33.4 | 1.65 | 30.10 | 2.77 | 27.86 | 3.38 | 26.64 | 38 | 32A | 1.1/4” | 42.2 | 1.65 | 38.86 | 2.77 | 36.63 | 3.56 | 35.05 | 48 | 40A | 1.1/2” | 48.3 | 1.65 | 44.96 | 2.77 | 42.72 | 3.68 | 40.89 | 57 | 50A | 2” | 60.3 | 1.65 | 57.02 | 2.77 | 54.79 | 3.91 | 52.50 | 76 | 65A | 2.1/2” | 73.0 | 2.11 | 68.81 | 3.05 | 66.93 | 5.16 | 62.71 | 95 | 80A | 3” | 88.9 | 2.11 | 84.68 | 3.05 | 82.80 | 5.49 | 77.93 | 114 | 90A | 3.1/2” | 101.6 | 2.11 | 97.38 | 3.05 | 95.50 | 5.74 | 90.12 | 133 | 100A | 4” | 114.3 | 2.11 | 112.19 | 3.05 | 108.20 | 6.02 | 102.26 | 152 | 125A | 5” | 141.3 | 2.77 | 135.76 | 3.40 | 134.49 | 6.55 | 128.19 | 190 | 150A | 6” | 168.3 | 2.77 | 162.74 | 3.40 | 161.47 | 7.11 | 154.05 | 209 | 200A | 8” | 219.1 | 2.77 | 213.54 | 3.76 | 211.56 | 8.18 | 202.72 | 305 | 250A | 10” | 273.0 | 3.40 | 266.24 | 4.19 | 264.67 | 9.27 | 254.51 | 381 | 300A | 12” | 323.8 | 3.96 | 315.93 | 4.57 | 314.71 | 9.52 | 304.80 | 457 | 350A | 14” | 355.6 | 3.96 | 347.68 | 4.78 | 346.05 | ----- | ----- | 533 | 400A | 16’ | 406.4 | 4.19 | 398.02 | 4.78 | 396.85 | ----- | ----- | 610 | 450A | 18” | 457.0 | 4.19 | 448.82 | 4.78 | 447.65 | ----- | ----- | 686 | 500A | 20” | 508.0 | 4.78 | 498.45 | 5.54 | 496.93 | ----- | ----- | 762 | 550A | 22” | 559.0 | 4.78 | 549.25 | 5.54 | 547.73 | ----- | ----- | 838 | 600A | 24” | 610.0 | 5.54 | 598.53 | 6.35 | 596.90 | ----- | ----- | 914 |
JIS | Unit: mm | NPS | OD | SCH 5S | SCH 10S | SCH 40S | Center to end H | A | B | T | ID | T | ID | T | ID | 15A | 1/2” | 21.7 | 1.65 | 18.4 | 2.1 | 17.5 | 2.8 | 16.1 | 38,1 | 20A | 3/4” | 27.2 | 1.65 | 23.9 | 2.1 | 23.0 | 2.9 | 21.4 | 38,1 | 25A | 1” | 34.0 | 1.65 | 30.7 | 2.8 | 28.4 | 3.4 | 27.2 | 38,1 | 32A | 1.1/4” | 42.7 | 1.65 | 39.4 | 2.8 | 37.1 | 3.6 | 35.5 | 47,6 | 40A | 1.1/2” | 48.6 | 1.65 | 45.3 | 2.8 | 43.0 | 3.7 | 41.2 | 57,2 | 50A | 2” | 60.5 | 1.65 | 57.2 | 2.8 | 54.9 | 3.9 | 52.7 | 76,2 | 65A | 2.1/2” | 76.3 | 2.1 | 72.1 | 3.0 | 70.3 | 5.2 | 65.9 | 95,3 | 80A | 3” | 89.1 | 2.1 | 84.9 | 3.0 | 83.1 | 5.5 | 78.1 | 114,3 | 90A | 3.1/2” | 101.6 | 2.1 | 97.4 | 3.0 | 95.6 | 5.7 | 90.2 | 133,4 | 100A | 4” | 114.3 | 2.1 | 110.1 | 3.0 | 108.3 | 6.0 | 102.3 | 152,4 | 125A | 5” | 139.8 | 2.8 | 134.2 | 3.4 | 133.0 | 6.6 | 126.6 | 190,5 | 150A | 6” | 165.2 | 2.8 | 159.6 | 3.4 | 158.4 | 7.1 | 151 | 228,6 | 200A | 8” | 216.3 | 2.8 | 210.7 | 4.0 | 208.3 | 8.2 | 199.9 | 304,8 | 250A | 10” | 267.4 | 3.4 | 260.6 | 4.0 | 259.4 | 9.3 | 248.8 | 381 | 300A | 12” | 318.5 | 4.0 | 310.5 | 4.5 | 309.5 | 10.3 | 297.9 | 457,2 | 350A | 14” | 355.6 | 4.0 | 347.6 | 5.0 | 345.6 | 11.1 | 333.4 | 533,4 | 400A | 16’ | 406.4 | 4.5 | 397.4 | 5.0 | 396.4 | 12.7 | 381 | 609,6 | 450A | 18” | 457.2 | 4.5 | 448.2 | 5.0 | 447.2 | 14.3 | 428.6 | 685,8 | 500A | 20” | 508.0 | 5.0 | 498.0 | 5.5 | 497.0 | 15.1 | 477.8 | 762 | 550A | 22” | 558.8 | 5.0 | 548.8 | 5.5 | 547.8 | 15.9 | 527 | 838,2 | 600A | 24” | 609.6 | 5.5 | 598.6 | 6.5 | 596.6 | 17.5 | 574.6 | 914,4 |
LƯU Ý: Sản phẩm Co hàn 90° công nghiệp, inox 304, SCH10 được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng! |
