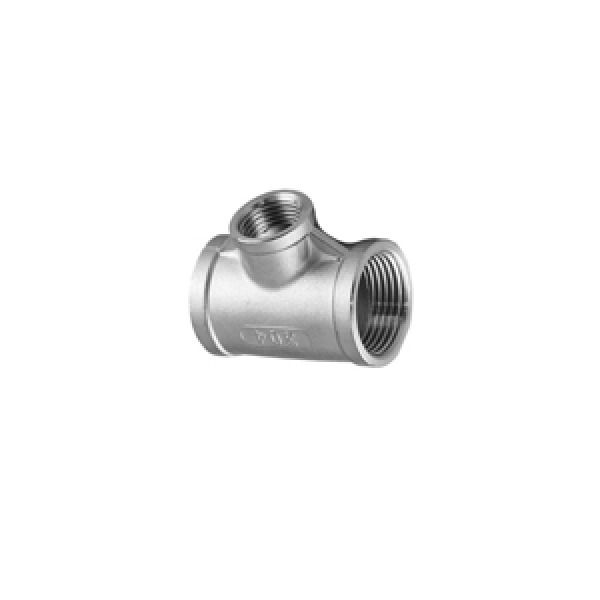

Tê giảm ren công nghiệp, inox 304

Thương hiệu: Inox Men

Giá: 33,500₫ (Chưa có VAT)

Thời gian bảo hành: 12 tháng

DN15

DN20

DN25

DN32

DN40

DN50

Inox 304

Số lượng

STAINLESS STEEL PIPE FITTINGS

PHỤ KIỆN REN ĐƯỜNG ỐNG INOX CÔNG NGHIỆP (5)

Red. Tee (RTB) Tê thu tê giảm nối ren trong inox công nghiệp

HT-1008

FEATURES

□ The thread ends conform to

ASME B1.20.1(NPT)

DIN 2999 & BS21

ISO 228/1 & ISO 7/1

□ Dimension conform to

ISO 4144

SP114

EN-10241

JIS

□ 150 LBS

□ Material conform to

ASTM A351-CF8M/1.4408

ASTM A351-CF8/1.4401

ASTM A216-WCB

AISI 304. 304L, 316, 316L, 301, 430 ECT

Standard	SIZE	1/4	3/8	1/2		3/4		1		1.1/4
Standard	SIZE	1/8	1/4	1/4	3/8	3/8	1/2	1/2	3/4	3/4	1

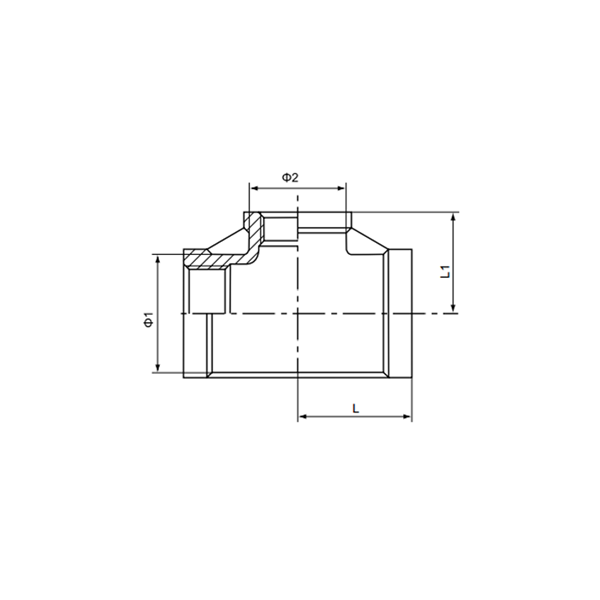

ISO4144	Φ1	16	20	24.5	24.5	30	30	37.5	37.5	46.5	46.5
	Φ2	13	16	16	20	20	24.5	24.5	30	30	37.5
	L	18	22	24	25	28	30	33	35	40	42
	L1	18	20	24	26	28	29	32	34	38	40
Standard	SIZE	1.1/2		2		2.1/2		3		4
Standard	SIZE	1	1.1/4	1.1/4	1.1/2	1.1/2	2	2	2.1/2	2.1/2	3
ISO4144	Φ1	53	53	65.5	65.5	82	82	95.5	95.5	121.5	121.5
	Φ2	37.5	46.5	46.5	53	53	65.5	65.5	82	82	95.5
	L	41	48	54	55	62	65	72	75	90	91
	L1	41	45	48	52	55	60	62	72	78	83
Standard	SIZE	1/4	3/8	1/2		3/4		1		1.1/4
Standard	SIZE	1/8	1/4	1/4	3/8	3/8	1/2	1/2	3/4	3/4	1
JIS	Φ1	19	22	26	26	32	32	39	39	48	48
	Φ2	16	19	19	22	22	26	26	32	32	39
	L	19	23	27	27	32	32	38	38	46	46
	L1	17	19	19	23	23	27	27	32	32	38
Standard		1.1/2		2		2.1/2		3		4
Standard		1	1.1/4	1.1/4	1.1/2	1.1/2	2	2	2.1/2	2.1/2	3
JIS	Φ1	55	55	67	67	83.5	83.5	98.2	98.2	123	123
	Φ2	39	48	48	55	55	67	67	83.5	83.5	98.2
	L	48	48	57	57	69	69	78	78	96	96
	L1	38	46	46	48	48	57	57	69	69	78
Standard	SIZE	1/4	3/8	1/2		3/4		1		1.1/4
Standard	SIZE	1/8	1/4	1/4	3/8	3/8	½	1/2	3/4	3/4	1
SP-114	Φ1	15.4	19.7	26.2	26.2	31.9	31.9	39.8	39.8	47.8	47.8
	Φ2	13.5	15.4	15.4	19.7	19.7	26.2	26.2	31.9	31.9	39.8
	L	20.6	23.6	28.2	28.5	33.3	33.3	38.1	38.1	44.5	44.5
	L1	20.6	20.6	20.6	23.6	23.6	28.5	28.5	33.3	33.3	38.1
Standard	SIZE	1.1/2		2		2.1/2		3		4
Standard	SIZE	1	1.1/4	1.1/4	1.1/2	1.1/2	2	2	2.1/2	2.1/2	3
SP-114	Φ1	55.9	55.9	66.5	66.5	83.3	83.3	98.2	98.2	123	123
	Φ2	39.8	47.8	47.8	55.9	55.9	66.5	66.5	83.3	83.3	98.2
	L	49	49	57.1	57.1	68	68	77.6	77.6	96.8	96.8
	L1	38.1	44.5	44.5	49	49	57.1	57.1	68	68	77.6
Standard	SIZE	1/4	3/8	1/2		3/4		1		1.1/4
Standard	SIZE	1/8	¼	1/4	3/8	3/8	1/2	1/2	3/4	3/4	1
EN-10241	Φ1	21.3	23.5	30	30	35	35	43	43	52	52
	Φ2	17	21.3	21.3	23.5	23.5	30	30	35	35	43
	L	21	23.6	28	28	33	33	38	38	45	45
	L1	19	21	21	23.6	23.6	28	28	33	33	38
Standard	SIZE	1.1/2		2		2.1/2		3		4
Standard	SIZE	1	1.1/4	1.1/4	1.1/2	1.1/2	2	2	2.1/2	2.1/2	3
EN-10241	Φ1	58	58	71	71	86.6	86.6	100.2	100.2	125	125
	Φ2	43	52	52	58	58	71	71	86.6	86.6	100.2
	L	50	50	58	58	70	70	78.5	78.5	97	97
	L1	38	45	45	50	50	58	58	70	70	78.5
