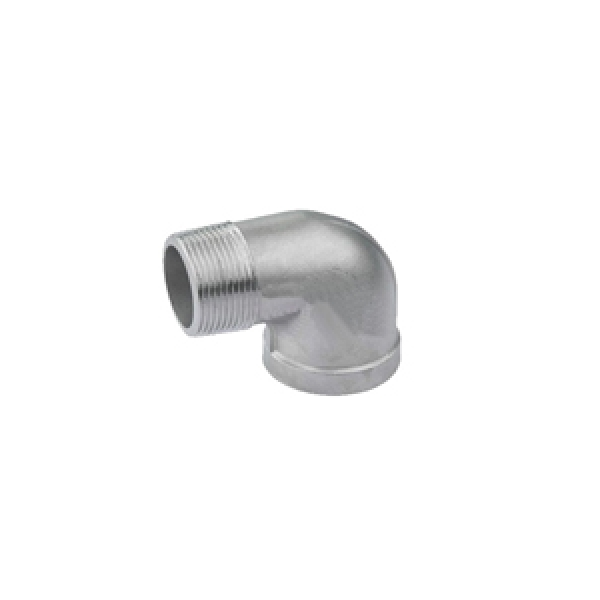

Co điếu công nghiệp, inox 304

HT-1002

FEATURES

□ The thread ends conform to

ASME B1.20.1(NPT)

DIN 2999 & BS21

ISO 228/1 & ISO 7/1

□ Dimension conform to

ISO 4144

SP114

EN-10241

JIS

□ 150 LBS

□ Material conform to

ASTM A351-CF8M/1.4408

ASTM A351-CF8/1.4401

ASTM A216-WCB

AISI 304. 304L, 316, 316L, 301, 430 ECT

Standard

SIZE

1/8

1/4

3/8

1/2

3/4

1

1.1/4

1.1/2

2

2.1/2

3

4

ISO4144

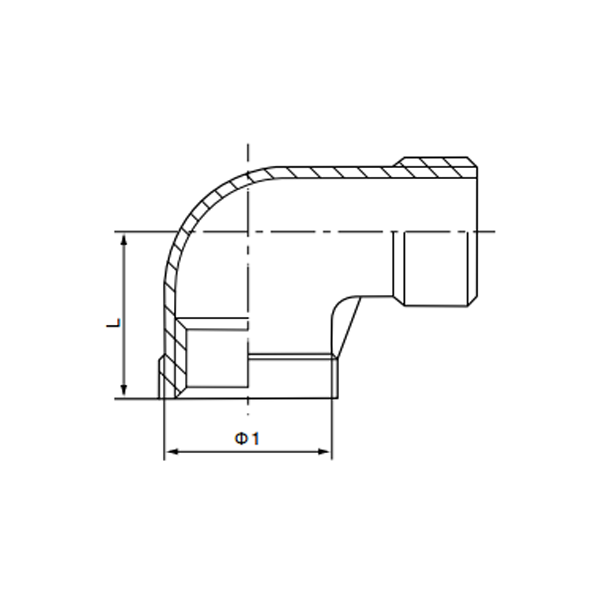

Φ1

13

16

20

24.5

30

37.5

46.5

53

65.5

82

95.5

121.5

L

17

19

23

27

32

38

45

48

57

69

78

96

Standard

SIZE

1/8

1/4

3/8

1/2

3/4

1

1.1/4

1.1/2

2

2.1/2

3

4

JIS

Φ1

16

19

22

26

32

39

48

55

67

83.5

97

123

L

17

19

23

27

32

38

46

48

57

69

78

96

Standard

SIZE

1/8

1/4

3/8

1/2

3/4

1

1.1/4

1.1/2

2

2.1/2

3

4

SP-114

Φ1

13.5

15.4

19.7

26.2

31.9

39.8

47.8

55.9

66.5

83.3

98.2

123

L

20.6

20.6

23.6

28.5

33.3

38.1

44.5

49

57.1

68

77.6

96.8

Standard

SIZE

1/8

1/4

3/8

1/2

3/4

1

1.1/4

1.1/2

2

2.1/2

3

4

EN-10241

Φ1

17

21

25

29

35

43

52

58.8

71.7

86.2

98.6

121

L

19

21

25

28

33

38

45

50

58

69

78

97
