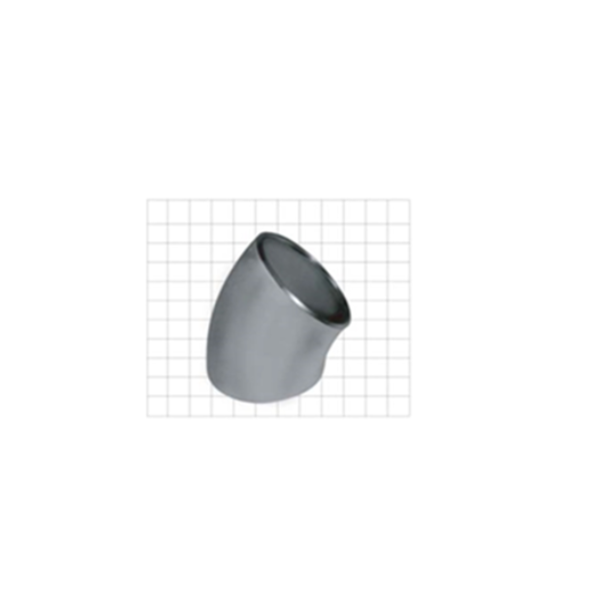

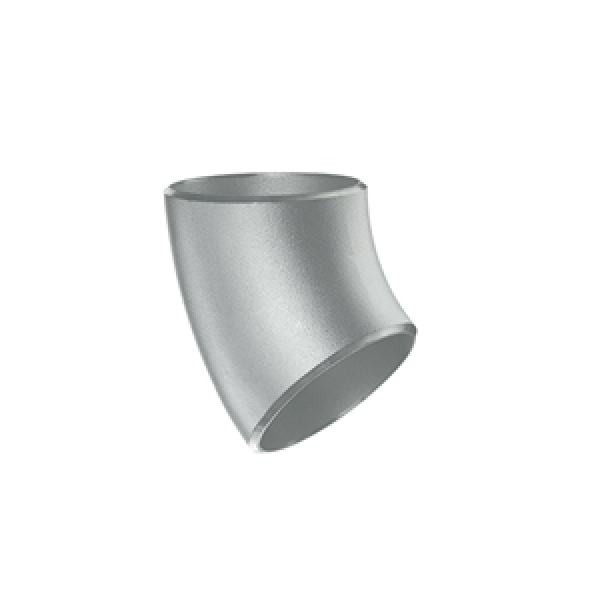

Co hàn 45° công nghiệp, inox 304, SCH10
Thương hiệu: Inox Men
Giá:
22,000₫
(Chưa có VAT)
Thời gian bảo hành: 12 tháng
STAINLESS STEEL BUTT-WELDING FITTINGS PHỤ KIỆN NỐI HÀN ĐƯỜNG ỐNG INOX CÔNG NGHIỆP | |

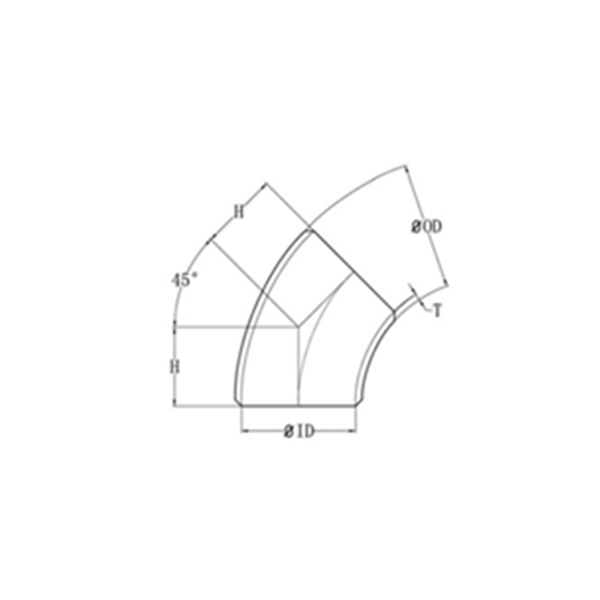

45°LONG RADIUS ELBOWS CÚT HÀN 45° LOẠI DÀI | 45E(L) OR 45LR |
 |  |
| GB | Unit: mm | ||||||||||||
| NPS | Outside diam | SCH 5S | SCH 10S | SCH 40S | Center to end H | ||||||||
| A | B | ODⅠ | ODⅡ | T | IDⅠ | IDⅡ | T | IDⅠ | IDⅡ | T | IDⅠ | IDⅡ | |
| 15A | 1/2” | 21.3 | 18.00 | 1.65 | 18.03 | 14.70 | 2.11 | 16.43 | 17.08 | 2.77 | 15.80 | 12.46 | 16 |
| 20A | 3/4” | 26.9 | 25.00 | 1.65 | 23.37 | 21.70 | 2.11 | 22.45 | 22.68 | 2.87 | 20.93 | 19.28 | 19 |
| 25A | 1” | 33.7 | 32.00 | 1.65 | 30.10 | 28.70 | 2.77 | 27.86 | 28.16 | 3.38 | 26.64 | 25.24 | 22 |
| 32A | 1.1/4” | 42.4 | 38.00 | 1.65 | 38.86 | 34.70 | 2.77 | 36.63 | 36.86 | 3.56 | 35.05 | 30.88 | 25 |
| 40A | 1.1/2” | 48.3 | 45.00 | 1.65 | 44.96 | 41.70 | 2.77 | 42.72 | 42.76 | 3.68 | 40.89 | 37.64 | 29 |
| 50A | 2” | 60.3 | 57.00 | 1.65 | 57.02 | 53.70 | 2.77 | 54.79 | 54.76 | 3.91 | 52.50 | 49.18 | 35 |
| 65A | 2.1/2” | 73.0 | 76.00 | 2.11 | 68.81 | 71.78 | 3.05 | 66.93 | 66.90 | 5.16 | 62.71 | 65.68 | 44 |
| 80A | 3” | 88.9 | 89.00 | 2.11 | 84.68 | 84.78 | 3.05 | 82.80 | 82.80 | 5.49 | 77.93 | 78.02 | 51 |
| 90A | 3.1/2” | 101.6 | ….. | 2.11 | 97.38 | ….. | 3.05 | 95.50 | 95.50 | 5.74 | 90.12 | ….. | 57 |
| 100A | 4” | 114.3 | 108.00 | 2.11 | 112.19 | 103.78 | 3.05 | 108.20 | 108.20 | 6.02 | 102.26 | 95.96 | 64 |
| 125A | 5” | 141.3 | 133.00 | 2.77 | 135.76 | 127.46 | 3.40 | 139.49 | 134.50 | 6.55 | 128.19 | 119.90 | 79 |
| 150A | 6” | 168.3 | 159.00 | 2.77 | 162.74 | 153.46 | 3.40 | 161.47 | 161.50 | 7.11 | 154.05 | 144.78 | 95 |
| 200A | 8” | 219.1 | 219.00 | 2.77 | 213.54 | 213.46 | 3.76 | 211.56 | 211.58 | 8.18 | 202.72 | 202.64 | 127 |
| 250A | 10” | 273.0 | 273.00 | 3.40 | 266.24 | 266.20 | 4.19 | 264.67 | 264.62 | 9.27 | 254.51 | 254.46 | 159 |
| 300A | 12” | 323.9 | 325.00 | 3.96 | 315.93 | 317.08 | 4.57 | 314.71 | 314.76 | 9.53 | 304.80 | 305.94 | 190 |
| 350A | 14” | 355.6 | 377.00 | 3.96 | 347.68 | 369.09 | 4.78 | 346.05 | 346.04 | ….. | ….. | ….. | 222 |
| 400A | 16” | 406.4 | 426.00 | 4.19 | 398.02 | 417.62 | 4.78 | 396.85 | 396.84 | ….. | ….. | ….. | 254 |
| 450A | 18” | 457.0 | 480.00 | 4.19 | 448.82 | 471.62 | 4.78 | 447.65 | 474.44 | ….. | ….. | ….. | 286 |
| 500A | 20” | 508.0 | 530.00 | 4.78 | 498.45 | 520.44 | 5.54 | 496.93 | 496.92 | ….. | ….. | ….. | 318 |
| 550A | 22” | 559.0 | ….. | 4.78 | 549.25 | ….. | 5.54 | 547.73 | 547.92 | ….. | ….. | ….. | 343 |
| 600A | 24” | 610.0 | 630.00 | 5.54 | 598.53 | 618.92 | 6.35 | 596.90 | 597.30 | ….. | ….. | ….. | 381 |
| 650A | 26” | 660.0 | ….. | ….. | ….. | ….. | ….. | ….. | ….. | ….. | ….. | ….. | 406 |
| 700A | 28” | 711.0 | 720.00 | ….. | ….. | ….. | ….. | ….. | ….. | ….. | ….. | ….. | 438 |
| 750A | 30” | 762.0 | ….. | 6.53 | 749.30 | ….. | 7.92 | 746.15 | 746.16 | ….. | ….. | ….. | 470 |
| 800A | 32” | 813.0 | 820.00 | ….. | ….. | ….. | ….. | ….. | ….. | ….. | ….. | ….. | 502 |
| ASME | Unit: mm | ||||||||
| NPS | OD | SCH 5S | SCH 10S | SCH 40S | Center to end H | ||||
| A | B | OD | T | ID | T | ID | T | ID | |
| 15A | 1/2” | 21.3 | 1.65 | 18.03 | 2.11 | 16.43 | 2.77 | 15.80 | 16 |
| 20A | 3/4” | 26.9 | 1.65 | 23.37 | 2.11 | 22.45 | 2.87 | 20.93 | 19 |
| 25A | 1” | 33.7 | 1.65 | 30.10 | 2.77 | 27.86 | 3.38 | 26.64 | 22 |
| 32A | 1.1/4” | 42.4 | 1.65 | 38.86 | 2.77 | 36.63 | 3.56 | 35.05 | 25 |
| 40A | 1.1/2” | 48.3 | 1.65 | 44.96 | 2.77 | 42.72 | 3.68 | 40.89 | 29 |
| 50A | 2” | 60.3 | 1.65 | 57.02 | 2.77 | 54.79 | 3.91 | 52.50 | 35 |
| 65A | 2.1/2” | 73.0 | 2.11 | 68.81 | 3.05 | 66.93 | 5.16 | 62.71 | 44 |
| 80A | 3” | 88.9 | 2.11 | 84.68 | 3.05 | 82.80 | 5.49 | 77.93 | 51 |
| 90A | 3.1/2” | 101.6 | 2.11 | 97.38 | 3.05 | 95.50 | 5.74 | 90.12 | 57 |
| 100A | 4” | 114.3 | 2.11 | 112.19 | 3.05 | 108.20 | 6.02 | 102.26 | 64 |
| 125A | 5” | 141.3 | 2.77 | 135.76 | 3.40 | 139.49 | 6.55 | 128.19 | 79 |
| 150A | 6” | 168.3 | 2.77 | 162.74 | 3.40 | 161.47 | 7.11 | 154.05 | 95 |
| 200A | 8” | 219.1 | 2.77 | 213.54 | 3.76 | 211.56 | 8.18 | 202.72 | 127 |
| 250A | 10” | 273.0 | 3.40 | 266.24 | 4.19 | 264.67 | 9.27 | 254.51 | 159 |
| 300A | 12” | 323.9 | 3.96 | 315.93 | 4.57 | 314.71 | 9.52 | 304.80 | 190 |
| 350A | 14” | 355.6 | 3.96 | 347.68 | 4.78 | 346.05 | ….. | ….. | 222 |
| 400A | 16” | 406.4 | 4.19 | 398.02 | 4.78 | 396.85 | ….. | ….. | 254 |
| 450A | 18” | 457.0 | 4.19 | 448.82 | 4.78 | 447.65 | ….. | ….. | 286 |
| 500A | 20” | 508.0 | 4.78 | 498.45 | 5.54 | 496.93 | ….. | ….. | 318 |
| 550A | 22” | 559.0 | 4.78 | 549.25 | 5.54 | 547.73 | ….. | ….. | 343 |
| 600A | 24” | 610.0 | 5.54 | 598.53 | 6.35 | 596.90 | ….. | ….. | 381 |
| 650A | 26” | 660.0 | ….. | ….. | ….. | ….. | ….. | ….. | 406 |
| 700A | 28” | 711.0 | ….. | ….. | ….. | ….. | ….. | ….. | 438 |
| 750A | 30” | 762.0 | 6.53 | 749.30 | 7.92 | 746.15 | ….. | ….. | 470 |
| 800A | 32” | 813.0 | ….. | ….. | ….. | ….. | ….. | ….. | 502 |
| JIS | Unit: mm | ||||||||
| NPS | OD | SCH 5S | SCH 10S | SCH 40S | Center to end H | ||||
| A | B | OD | T | ID | T | ID | T | ID | |
| 15A | 1/2” | 21.7 | 1.65 | 18.4 | 2.1 | 17.5 | 2.8 | 16.1 | 15.8 |
| 20A | 3/4” | 27.2 | 1.65 | 23.9 | 2.1 | 23.0 | 2.9 | 21.4 | 15.8 |
| 25A | 1” | 34.0 | 1.65 | 30.7 | 2.8 | 18.4 | 3.4 | 27.2 | 15.8 |
| 32A | 1.1/4” | 42.7 | 1.65 | 39.4 | 2.8 | 37.1 | 3.6 | 35.5 | 19.7 |
| 40A | 1.1/2” | 48.6 | 1.65 | 45.3 | 2.8 | 43.0 | 3.7 | 41.2 | 23.7 |
| 50A | 2” | 60.5 | 1.65 | 57.2 | 2.8 | 54.9 | 3.9 | 52.7 | 31.6 |
| 65A | 2.1/2” | 76.3 | 2.1 | 72.1 | 3.0 | 70.3 | 5.2 | 65.9 | 39.5 |
| 80A | 3” | 89.1 | 2.1 | 84.9 | 3.0 | 83.1 | 5.5 | 78.1 | 47.3 |
| 90A | 3.1/2” | 101.6 | 2.1 | 97.4 | 3.0 | 95.6 | 5.7 | 90.2 | 55.3 |
| 100A | 4” | 114.3 | 2.1 | 110.1 | 3.0 | 108.3 | 6.0 | 102.3 | 63.1 |
| 125A | 5” | 139.8 | 2.8 | 134.2 | 3.4 | 133.0 | 6.6 | 126.6 | 78.9 |
| 150A | 6” | 165.2 | 2.8 | 159.6 | 3.4 | 158.4 | 7.1 | 151 | 94.7 |
| 200A | 8” | 216.3 | 2.8 | 210.7 | 4.0 | 208.3 | 8.2 | 199.9 | 126.3 |
| 250A | 10” | 267.4 | 3.4 | 260.6 | 4.0 | 259.4 | 9.3 | 248.8 | 157.8 |
| 300A | 12” | 318.5 | 4.0 | 310.5 | 4.5 | 309.5 | 10.3 | 297.9 | 189.4 |
| 350A | 14” | 355.6 | 4.0 | 347.6 | 5.0 | 345.6 | 11.1 | 333.4 | 220.9 |
| 400A | 16” | 406.4 | 4.5 | 397.4 | 5.0 | 396.4 | 12.7 | 381 | 252.5 |
| 450A | 18” | 457.2 | 4.5 | 448.2 | 5.0 | 447.2 | 14.3 | 428.6 | 284.1 |
| 500A | 20” | 508.0 | 5.0 | 498.0 | 5.5 | 497.0 | 15.1 | 477.8 | 315.6 |
| 550A | 22” | 558.8 | 5.0 | 548.8 | 5.5 | 547.8 | 15.9 | 527 | 347.2 |
| 600A | 24” | 609.6 | 5.5 | 598.6 | 6.5 | 596.6 | 17.5 | 574.6 | 378.7 |
| 650A | 26” | 660.4 | 5.5 | 649.4 | 8.0 | 644.4 | 18.9 | 622.6 | 410.3 |
| 700A | 28” | 711.2 | 5.5 | 700.1 | 8.0 | 659.2 | ….. | ….. | 441.9 |
| 750A | 30” | 762.0 | 6.5 | 749.0 | 8.0 | 746.0 | ….. | ….. | 473.4 |
| 800A | 32” | 812.8 | ….. | ….. | 8.0 | 796.8 | ….. | ….. | 505 |
LƯU Ý:
Sản phẩm Co hàn 45° công nghiệp, inox 304, SCH10 được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
